Passive low-pass filter

‘Passive’ refers to the fact that this type of filter is incapable of power gain and uses no active components. This also means that no external power source is needed for it to function.

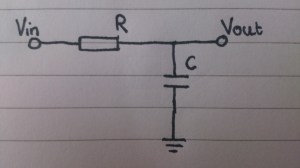

Passive low-pass filter

A low-pass filter, as the name suggests, allows low frequencies to pass whilst cutting off higher frequencies. The cut-off frequency (Fc), is calculated by using the formula below. ‘R’ is the resistor value, and ‘C’ is the capacitor value.

Frequency cut-off formula



Advertisements

Passive high-pass filter

‘Passive’ refers to the fact that this type of filter is incapable of power gain and uses no active components. This also means that no external power source is needed for it to function.

Passive high-pass filter

A high-pass filter, as the name suggests, allows high frequencies to pass whilst cutting off lower frequencies. The cut-off frequency (Fc), is calculated by using the formula below. ‘R’ is the resistor value, and ‘C’ is the capacitor value.

Frequency cut-off formula
