# Potentiometers

Potentiometers are essentially potential dividers with one significant difference. You can variate the voltage that is being outputted. The resistance, and consequently the voltage, can be changed by adjusting the position of the knob. For reference, here’s the link to the post on potential dividers:  ‘https://thelectronicsblog.wordpress.com/2015/11/11/potential-dividers’ Above is a diagram of what a potentiometer physically looks like. Rotating the knob directly changes the position of the wiper. The position that the wiper is in dictates the voltage outputted from the wiper wire.

To explain this more easily, imagine that the two resistors from the potential divider diagram have been squished together, and the insulated coating has been removed.  Assume that R1 and R2 in the diagram on the left are each 5k. They have been squished together on the diagram on the right. This forms a 10k piece of resistive material . But because the position of the Vout wire is approximately half way down, it is the same as having a 5k resistors on each side. Now assume that the Vout wire is instead now 3/4 of the way down the resistive material. This is equivalent to having a 7.5k resistor as R1, and a 2.5k resistor as R2.

Now that the premise behind potentiometers has been explained, here’s the original physical diagram shown side by side with what the internal wiring of a potentiometer would actually look like:  Hopefully you now understand how a potentiometer works. However, if you have any questions, please don’t hesitate to ask.

# OR Gate using transistors

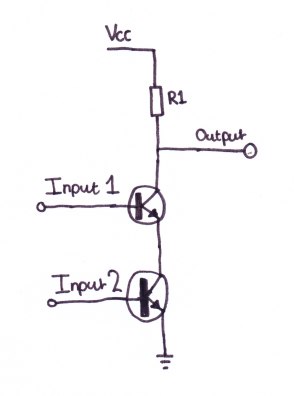

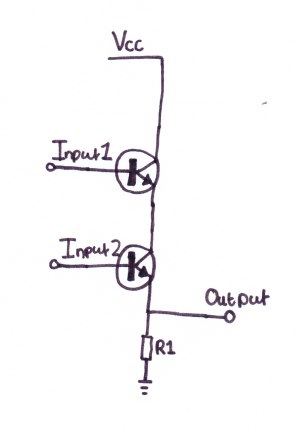

An OR Gate requires four NPN transistors. If # AND GATE USING A TRANSISTOR # NAND GATE USING A TRANSISTOR # Bipolar Junction Transistors (BJTs)

#### BJT overview

BJTs (Bipolar Junction Transistors) can either be of one of two types, NPN or PNP. This refers to the polarity of the materials used in them. ‘N’ means that the layer of material has a negative polarity, and ‘P’ means that is positive.

This is where BJTs get their name from, Bipolar references the fact that it consists of two types of semiconductor (N and P). Junction refers to the fact that there is a physical connection between these semiconducting materials, as opposed to a Field Effect Transistor.

The NPN/PNP material arrangement on BJTs corresponds to the terminals of the transistor. Collector, Base, and Emitter. In an NPN transistor, the collector and the emitter terminals are connected to a semiconducting material with a negative polarity, and the Base a positive. Whereas PNP transistors are the opposite. More information about P and N type semiconductors can be found here: ‘https://tphelectronics.com/2016/09/30/semiconductors/‘.

#### NPN bipolar junction transistor

When current enters B (the Base) , It allows current to flow from C (the Collector) to the E (the Emitter). This is shown by the direction of the arrow in the schematic. When there is no current applied to B, current cannot flow from C to E.

In an NPN transistor there is a PN junction between the base and the emitter terminals. So, as within diodes, there is around a 0.7v drop between the base and the emitter when it is turned on. Therefore, for a significant amount of current to be able to flow from C to E, the base needs to be above 0.7v.

Depending on the type of NPN BJT, the current flowing from the emitter is around 100x that of the current flowing into the base. Of course for this to happen, the collector needs to be able to draw that amount of current from the source.

The current flowing out of the emitter is always equal to the sum of the current flowing from the base and the collector. #### PNP bipolar junction transistor

PNP BJTs work in the opposite way to NPN BJTs. When the base is 0.7v less than that of the emitter, current is able to flow in through the emitter, and out through the collector. This however limits the components usage, as the voltage at the base always needs to be below that of the emitter. In addition to this, using the circuit arrangement: ‘not gate using a transistor‘, an NPN transistor can be set up to perform the same operation.

PNP transistors are mainly used in conjunction with complimentary NPN transistors, circuits like push-pull amplifiers. # NOT Gate using a transistor

with an NPN BJT (bipolar junction transistor) and two resistors you can create a Not gate. # 7-Segment display  Each of the seven segments (A – G) and the decimal point (P ) are connected in the same way as an LED, in series with a resistor.

One of the Com (common) ports are connected to ground . This acts as a single cathode for all of the LEDs in the seven segment display. # Tutorials – Section 1 – Lesson 1 LED Button

Following on from the set-up for this section, we’re going to create a circuit which switches on and off on LED.

For this circuit you will need:

• An Arduino Board.
• 1 – 10kΩ resistor.
• 1 – LED
• 1 – push button

The anode, cathode, and general orientation of an LED is  shown in a schematic like this:

This is a simple schematic of the circuit.The begging of which will be connected to the 5v rail on the breadboard, and the end will be connected to the ground (GND) rail. By pressing in the button in, the LED will light. As soon as the button is no longer being pressed, the light will go off once more.

Here’s the actual circuit shown  below:   # Tutorials – Section 1 – Setup

For section one we’ll only be using the 5 volts supply pin and the ground pin on the Arduino. Firstly you’ll need to supply power to the Arduino by using the USB cable to either plug it into a computer or another USB socket capable of supplying power.

Once you have done this, connect the Arduino to the breadboard as shown in the diagram below. In the following section 1 tutorials, this same set-up will be used.
